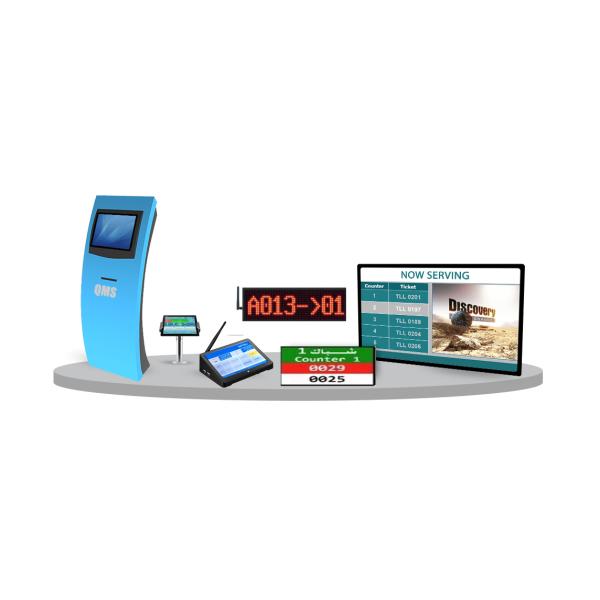

Electronic Hospital Queuing Token Number Display Queue Management System
How Queue Management System Works?
Scroll below to find out the up-to-date product catalog of Shangxu queue management system and workings with detailed specifications and pictures. Our ticket dispensing kiosk models vary in their look and feel as well as functionality – as required by the customer or premise. Different types of counter LCDs and LEDs, waiting area solutions, teller and agent calling options, Radio frequency (disconnected from the corporate network) and Wi-Fi solutions to support every requirement and need of the customers.
Ticket Machine
Queue Machine-SX-QTK173
SX-QTK173 is a complete and sophisticated ticket dispensing unit of queue management system that can support all the advanced functionalities of Queue.
Specification
| Weight |
50 kgs |
| Screen |
IR Touch 15/17/19 inch |
| Material |
Mild Steel, Spray painted |
| Processor |
Core 2 Duo/i3/i5/i7 |
| Memory |
1Gb & above |
| Storage |
80Gb & above |
| Network |
WiFi/Ethernet/RS232 |
| Power Supply |
220-240V / Surge Protection |
| Other |
Lockable Rear Doors |
Feature:
Thermal Printing
Multi language
Suge Protection
LCD Counter Screen Square HDMI/VGA
This counter screen is a square shaped LCD screen working on individual power and to be connected over HDMI or VGA cable. It is a cost effective solution for the projects where Digital Signage is to be available on over the counter.
| Color |
Black |
| Screen |
11.5" 13.3" 15.6" |
| Connectivity |
HDMI/VGA |
Feature
LCD
HDMI/VGA
Wired
Power
Multi Language
4 Digit Counter Screen RF
The conventional 4 Digit counter screen is all time favorite choice of our customers. The screen requires no cabling as it operates on Radio Frequency. It is the most cost effective and secure solution to be installed in any environment without any dependency of cabling or network availability.
| Height |
12cm |
| Width |
34cm |
| Thickness |
5.5cm |
| Weight |
1.2 kgs |
| LEDs |
Red, Green, Yellow |
| Casing |
Aluminum |
| Connectivity |
Radio Frequency
|
Feature
Digital Screen
Radio Frequency
Wireless
Power
Multi Language
Waiting area Display Units
(LCD/LED) VGA/HDMI
It is important to ensure that the customer has the most entertaining time while waiting for their turn. It is also a good time for the businesses to educate the visitors about their products and services by drawing their attention to the marketing collateral. Shangxu Queue’s multimedia and digital signage component provides the state of art features to the users for presenting their marketing collateral in the most professional way.
Technical Specification for Player Box
| Color |
Black |
OS |
Windows |
| Connectivity |
HDMI/VGA |
Power |
12 V Power Adapter |
Feature
Various Options
Various Sizes
Digital Signage
Agent Calling Unit
21 buttons Ticket Calling Terminal
21 buttons based calling units are ideal for scenarios where the counter agents don’t have computer machines.
Feature
Ticket Info
Service Time
Ticket Options
- Call
- Recall
- Special Call
- Call Back
- Transfer
Software Calling Unit
Software based calling units are ideal for scenarios where the counter agents have computer machines.
Feature
Ticket Info
Service Time
Ticket Options
- Call
- Recall
- Special Call
- Call Back
- Transfer

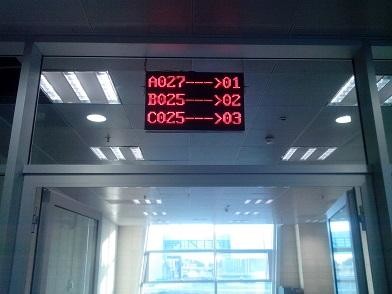

Display Installtion(Can install depend on your detailed environment)
